Part Number
Drop Pipe: 2"
Casing O.D.: 6 5/8" to 7"
Will Support: 700
Replacement Pressure Seal: OR-28T

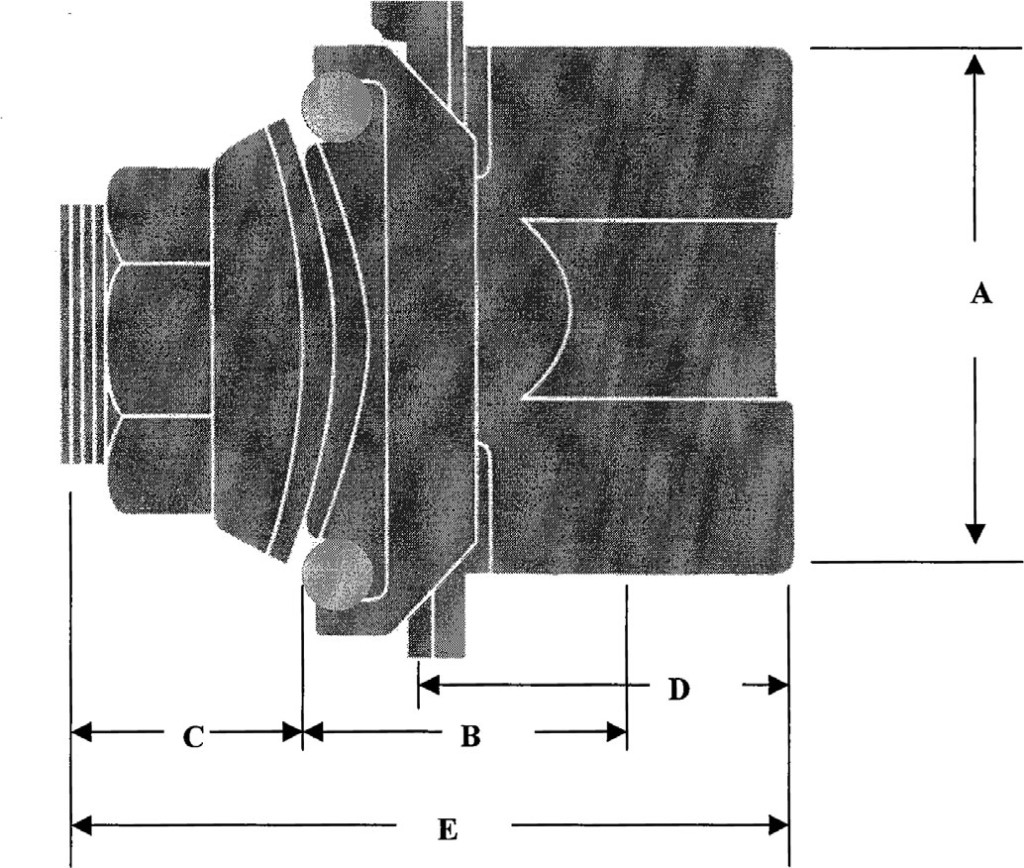

Nominal Dimensions based on average O-Ring Compression
- Removable Half Height: 5.063"
- Inner O-Ring to Drop Pipe Centerline: 2.813"
- Inner O-Ring to end of nipple: 1.750"
- Overall width of removable half: 3.80"
- Overall width of assembly: 6.10"
