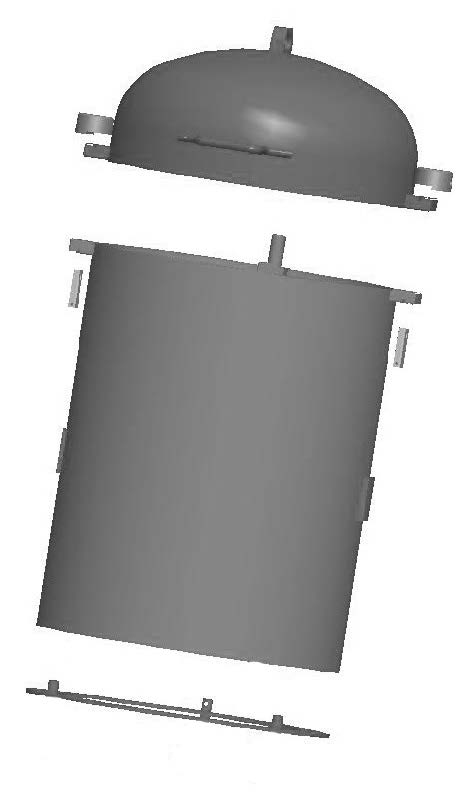

Protective Well Enclosure (PWE)
Product Features:
- Durable Steel Construction
- Stainless Steel Lock Pins
- Shielded Locks
- Easy Open Lid
- Lift Hook for Easy Removal
- Base Ring for Easy Cement Installation
- Shielded Screened Vents for Proper Airflow
- Powder Coat Painted Interior & Exterior
| Model No. | DIA “A” | DIM “B” | DIA “C” | DIM “D” |
|---|---|---|---|---|
| PWE610E36 | 24″ | 36″ | 19.5″ | 12.5″ |
| PWE1216E36 | 30″ | 36″ | 25.5″ | 12.5″ |
| PWE1820E36 | 36″ | 36″ | 31.5″ | 12.5″ |
| PWE2226E36 | 42″ | 36″ | 37.5″ | 14.5″ |
| ITEM NO. | QUANTITY | PART NO. | DESCRIPTION |
|---|---|---|---|
| 1 | 2 | PWE538 | Shielded lock keyed alike |
| 2 | 2 | PWE465 | Lock pins stainless steel |
| 3 | 3 | PWE6 | Concrete anchor bolt |
Baker Monitor Industrial Pitless Unit Models with Monitor Cap:
| Well Case, Upper Case | DIM “E” | DIM “F” |
|---|---|---|
| 6″ x 7″ | 19.5″ | 12.9″ |
| 6.6″ x 7″ | 19.5″ | 12.9″ |
| 8″ x 10″ | 28.5″ | 18.5″ |
| 10″ x 12″ | 28.5″ | 22.5″ |
| 10″ x 14″ | 28.5″ | 22.5″ |
| 12″ x 14″ | 28.5″ | 22.5″ |
| 14″ x 16″ | 28.8″ | 24.5″ |
| 16″ x 18″ | 28.3″ | 25.4″ |
| 18″ x 20″ | 28.3″ | 27.4″ |
| 20″ x 22″ | 28.3″ | 30.5″ |
| 22″ x 26″ | 29.5″ | 34.6″ |
